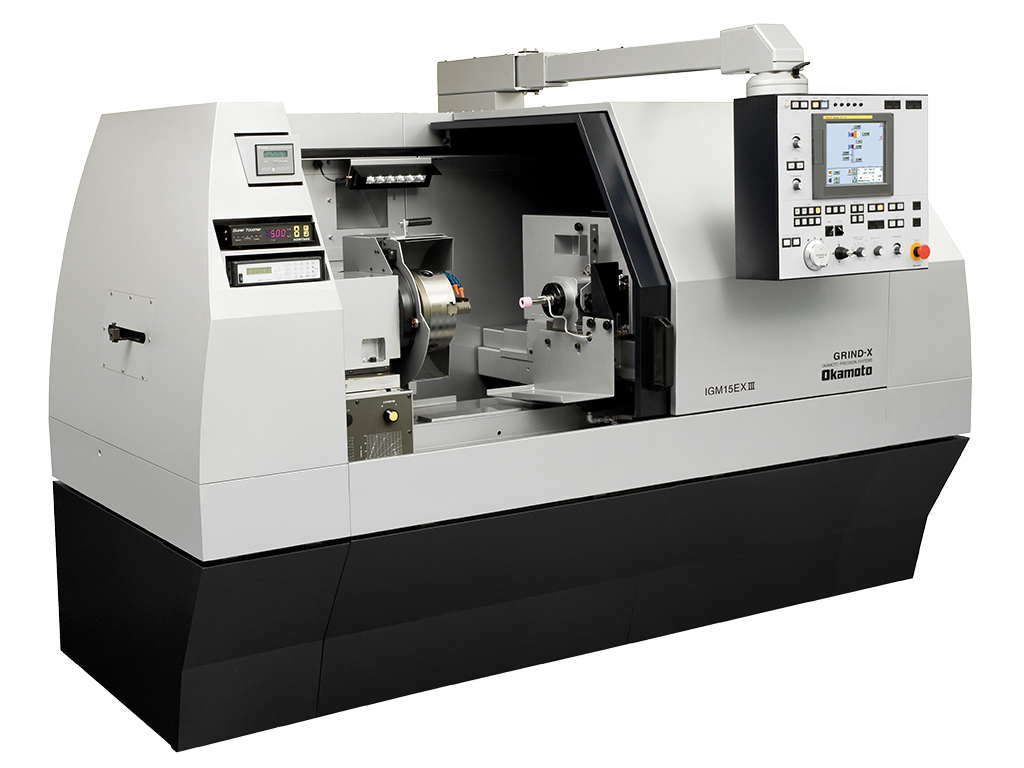

IGM 15 NCIII-2
IGM 15 NCIII-2
Internal grinding machine with twin spindles
Standard software with 10-step grinding program Software for plain bore, taper and contour grinding with 2-axis control. Entry of grinding data via touchscreen with easy to use software. Wheel and workhead spindles are driven by AC servomotors.
High precision is further optimized via thermally stabilized infeed ball screw.
Twin spindle with standard spindle speed 10,000rpm and 30,000rpm
Optional spindle speeds available up to 60,0000rpm
Highly accurate oil cooled in-feed ball screw
FANUC touchscreen with easy to use software input
| Specification | Value |
|---|---|
| Bore Diameter Grinding Capacity, mm | 6 – 100 |
| Max. Grinding Depth (approx., depending on quill), mm | 125 |
| Swing Diameter in Chuck Guard, mm | 260 |
| Loading Capacity of Workpiece Spindle Nose, kg | 70 |
| Length x Depth, approx., mm | 2525 x 2010 |
