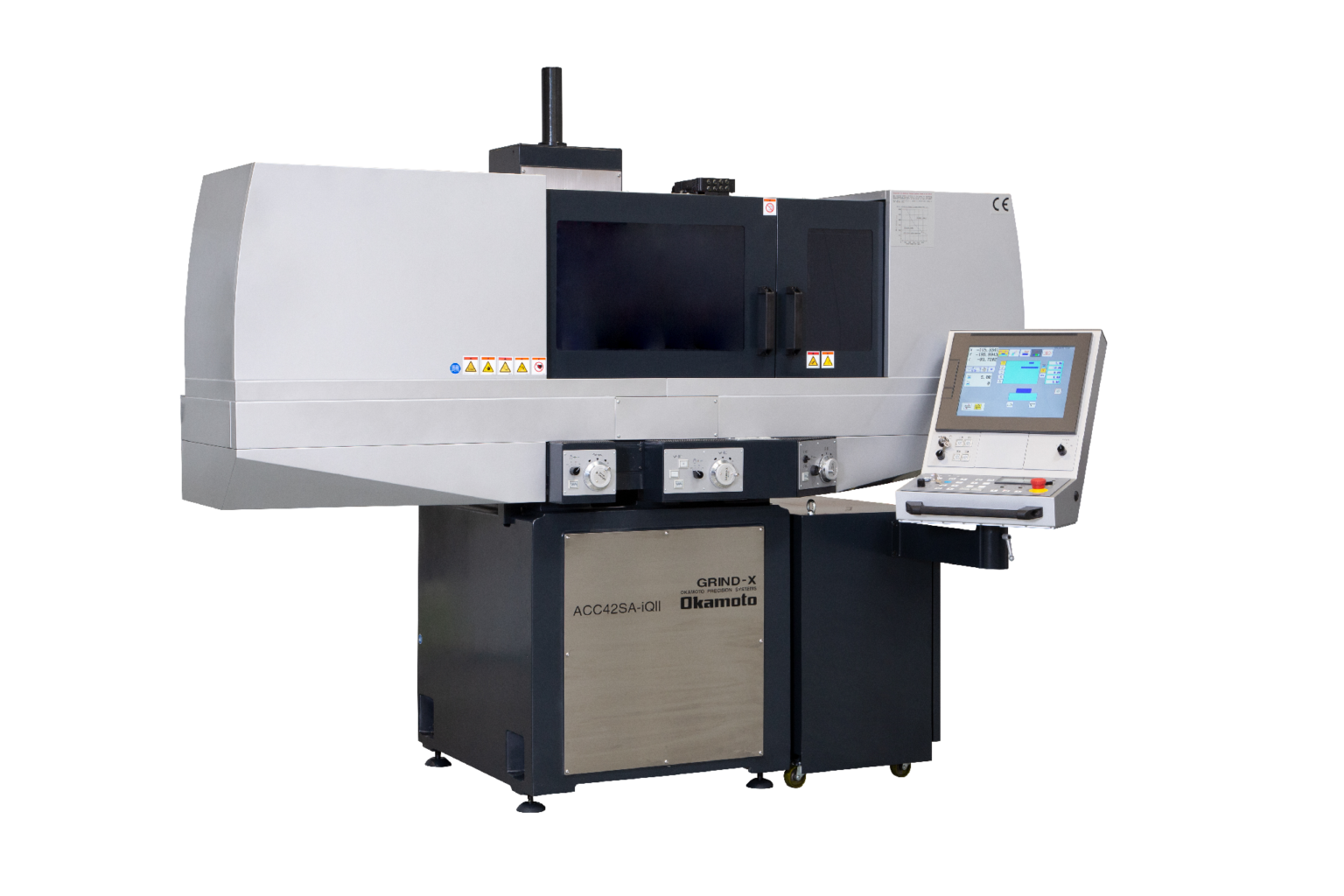

ACC-42SAiQ
ACC-42SAiQ
Endless challenge to Zero
Simply the best CNC profile grinding machine developed from our long experience in the grinding machine market. The advantages are manifold: Compact Moving Saddle Design, Fanuc CNC Control with dialogue software, 1/10 Micron AC Servo Motors, Fully Automatie Grind Cycle, automatie profile wheel dressing with Compensation, for the purpose of long lifetime and maintenance free operation, oil lubrication with automatic lubrication is applied to the guide and slide way, combination of both scraped V-V slide way and low friction Turcite assure accurate grinding for life, all castings exhibit high static and dynamic stiffness and excellent damping qualities.
Grinding wheel (2O5 x 13 x 31.75 mm)
Grinding wheel adaptor for wheels
Levelling screws and plates
Necessary Tools
Worklight
| EN | DE | |
| TECHNICAL DATA | TECHNISCHE DATEN | |
| Capacity & Dimensions | Maße und Gewichte | ACC-42SA-iQ |
| Table area (ground), mm | Aufspannfläche (mm) | 500×204 |
| Max. table longitudinal travel, mm | Manueller Verfahrweg der Tischachse (mm) | 530 |
| Max. cross transverse travel, mm | Maximaler Verfahrweg der Querachse (mm) | 230 |
| Max. grinding height – table to new wheel (Ø 205), mm | Maximaler Abstand zwischen Tisch und Schleifscheibe Ø 205 (mm) | 357.5 |
| Standard magnetic chuck, mm | Magnetspannplatte (mm) | 400x200x80 |
| Table load capacity approx., Kg. | Maximale Tischbelastung (kg) | 120 |
| Length x Depth, approx., mm | Länge x Breite (ca. in mm) | 2270 x 2781 |
| Net weight without accessories, approx., Kg. | Gewicht ohne Zubehör (ca. in kg) | 2100 |
| X-axis/longitudinal travel | X Achse (Längs) | |
| Table feed, ballscrew, continuously adjustable, m/min | Tischgeschwindigkeit (stufenlos einstellbar in m/min) | 0.1-25 |
| Electronic hand wheel graduations, µm | Einteilung Handrad pro Teilstrich (µm) | 0.1/1/10/50 |
| Y-axis/vertical travel | Y Achse (Vertikal) | |
| Max. Vertical table top to spindle centre, mm | Max. Abstand, Tische auf Spindel Zentrum, mm | 460 |
| Feed (auto.), µm | Zustellung (µm) | 0.1 – 30 |
| Sparking Passes | Ausfeuerhübe (Anzahl) | 0 – 99 |
| Rapid traverse, mm/min | Rapid traverse, mm/min | 1000 |
| Electronic hand wheel graduations, µm | Einteilung Handrad pro Teilstrich (µm) | 0.1 /1 / 10 |
| Z-axis/transverse travel | Z Achse (Quer) | |
| Intermittent feed, mm | Schrittweite (mm) | 0.5 – 20 |
| Continuous feed, mm/min | Kontinuierlicher Quervorschub (mm/min) | 0 – 1000 |
| Electronic hand wheel graduations, µm | Einteilung Handrad pro Teilstrich (µm) | 0.1/1/10/50 |
| Grinding wheel | Schleifscheibe | |
| Grinding Wheel – Diameter x width x bore, mm | Schleifscheibe D x B x d (mm) | 205x25x31.75 |
| Max. wheel width (with recessed wheel), mm | Maximale Breite (mm) | 25 (38) |
| Rotational speed, rpm | Drehzahl (min-1) | 1000 – 3600 |
| Drive motor | Motoren | |
| Grinding spindle, standard, kW | Schleifspindel Standard (kW) | 2.2 |
| Hydraulic pump, kW | Hydraulikpumpe (kW) | 0.75 |
| Vertical travel AC servomotor, kW | AC Servomotor Y Achse (kW) | 0.75 |
| Transverse travel AC servomotor, kW | AC Servomotor Z Achse (kW) | 0.75 |
| Electrical equipment | Anschlusswerte | |
| Operating voltage/frequency, V/Hz | Betriebsspannung (V) / Frequenz (Hz) | 400/50 |
| Max Power Requirement (incl. Electro-Magnet & Coolant) | Stromaufnahme (ca. in kVA) | 8 KVA |
| Standard size of magnetic chuck | 400 x 200 |
| Max. grinding height between table and new wheel (Ø 200 mm) | 357 |
| Table load incl. magnetic chuck, approx.. Kg. | 120 |
| Length x Depth, approx., mm | 2270 x 2780 |
